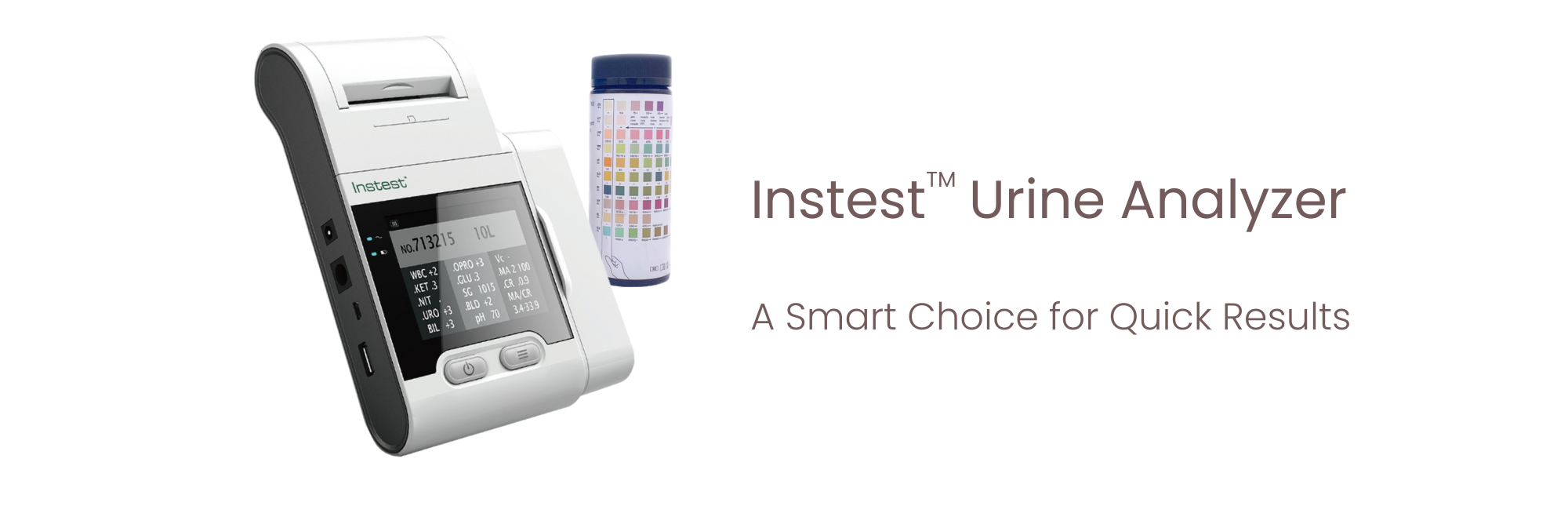

Instest Urine Analyzer


*ACR (Albumin/Creatinine Ratio) - Accurate Indicator of Microalbuminuria

  • Microalbuminuria is a sensitive indicator of early kidney damage in diabetes or in hyper[1]
  • ACR is a reliable marker as it is not a­ected by factors such as hyperglycemia, exercise, fever, protein intake in the diet and drugs; and more convenient than UAE (gold standard of microalbuminuria diagnosis).
  • The KDOQI Diabetic Nephrology Guidelines and the American Diabetes Association (ADA) recommended ACR as the preferred method for screening microalbuminuria in 2007.
  • Microalbuminuria is de‑ned as ACR ≥3.5 mg/mmol (female) or ≥2.5 mg/mmol (male).**

** UK Renal Association


  • Comprehensive Range of Test Menu
  • Testing Up to 14 Parameters in One Go
  • Built-in Thermal Printer for Instant Printing
  • Built-in Battery Available for STAT Usage
  • Light Weight for Easy Mobility
  • Touch Screen Operation with Big Screen for Easy Operation
  • Principle: Photoelectric Colorimetry
  • Testing Speed : 60 tests/hour
  • Data Memory: 10,000 Results
  • Strip Incubation Time: 1 minute
  • Light Wavelength: 470nm, 525 nm and 625 nm
  • Display : 3.5” LCD touch screen
  • Printer: Built-in thermal printer
  • Connectivity: RS232 port ,USB 2 ports
  • Working Condition: 10-30℃, RH≤ 80% , 76-106kPa
  • Working Voltage: AC100-240V, 50/60Hz, DC 5.85V±0.45V (AA×4)
  • Weight: 600g
  • Dimensions(L/W/H): 200*137*52 mm
