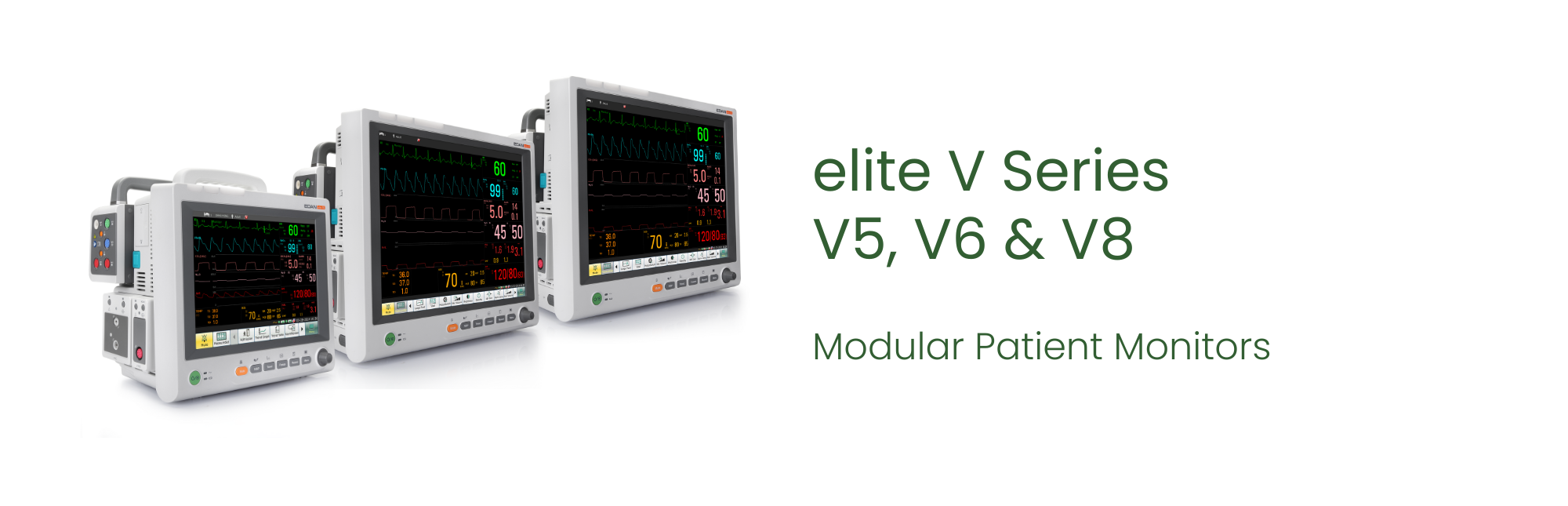

elite V Series V5,V6 & V8

Home > Patient Monitoring > Edan elite V Series

Edan elite V Series

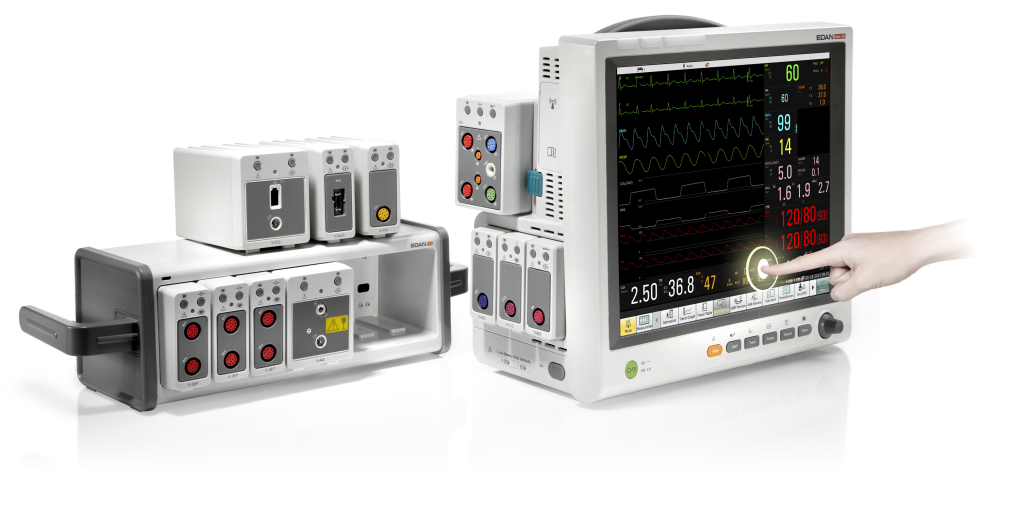

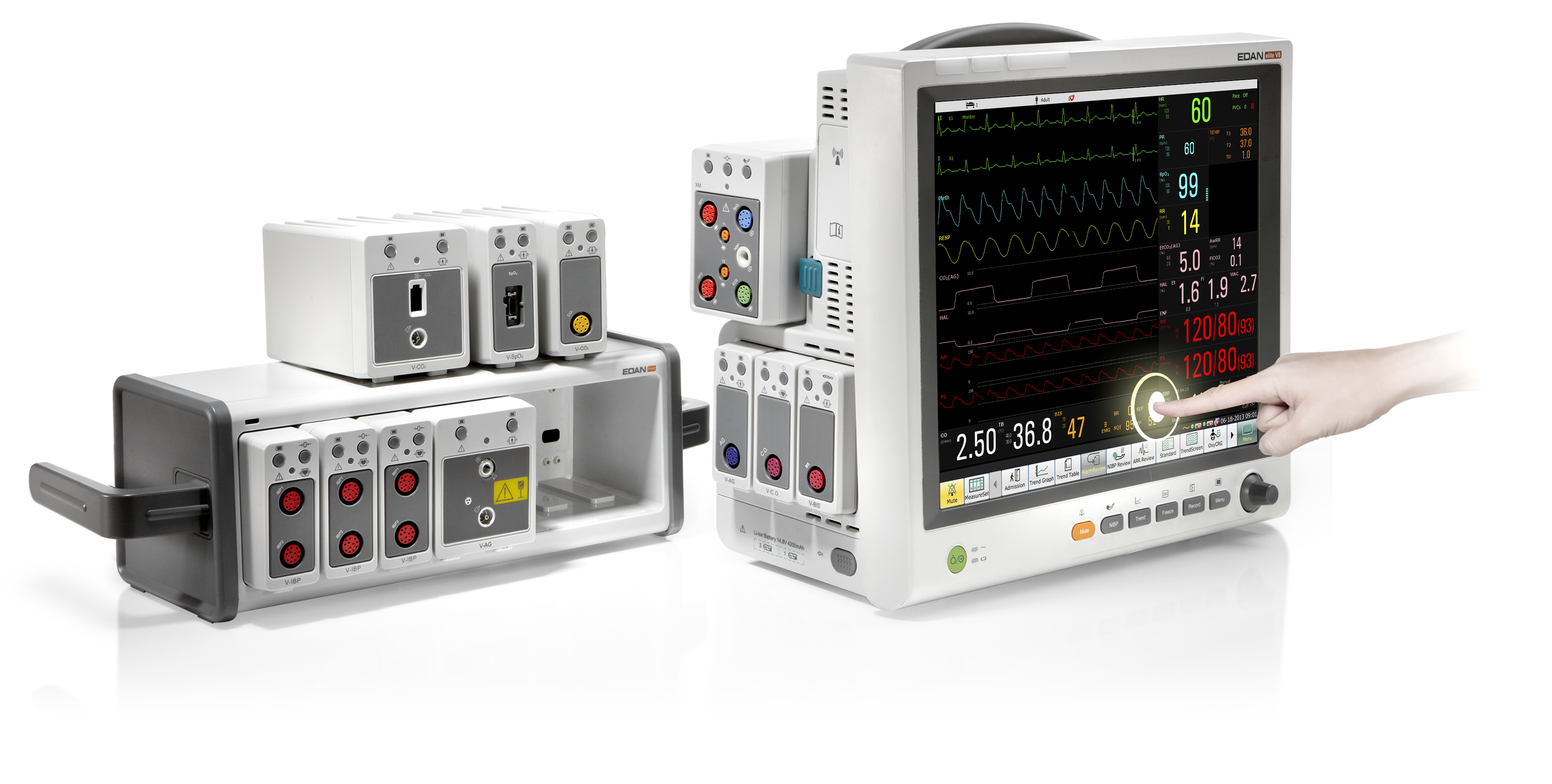

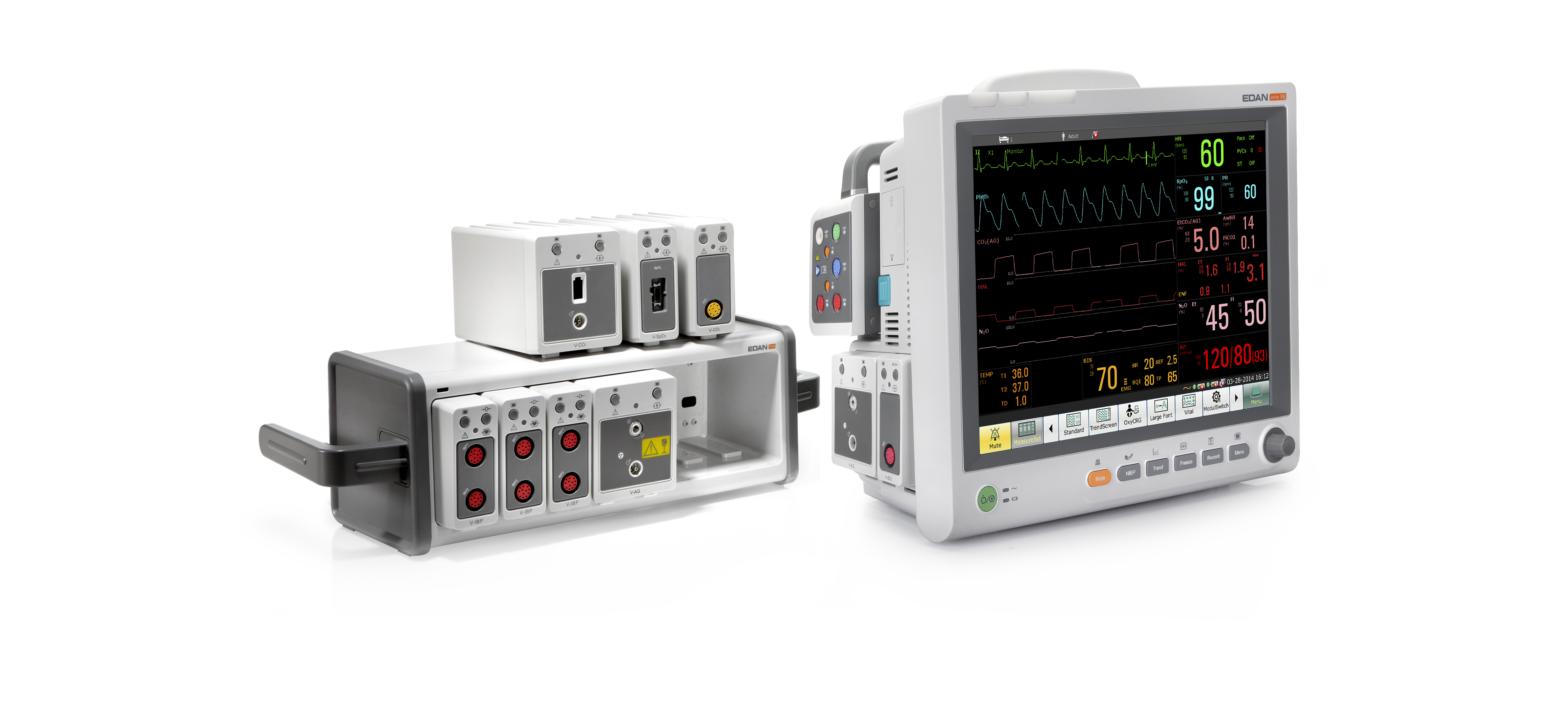

Modular Design

  • Plug and play
  • Customizable combination

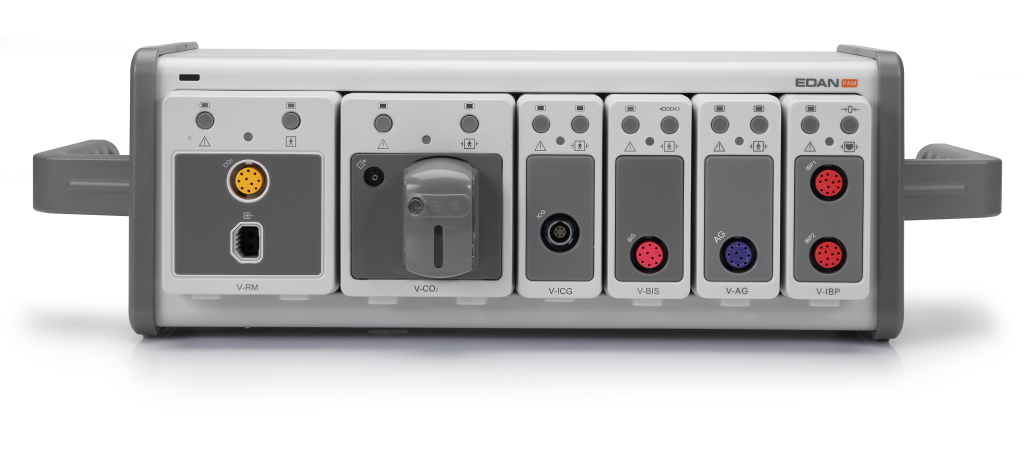

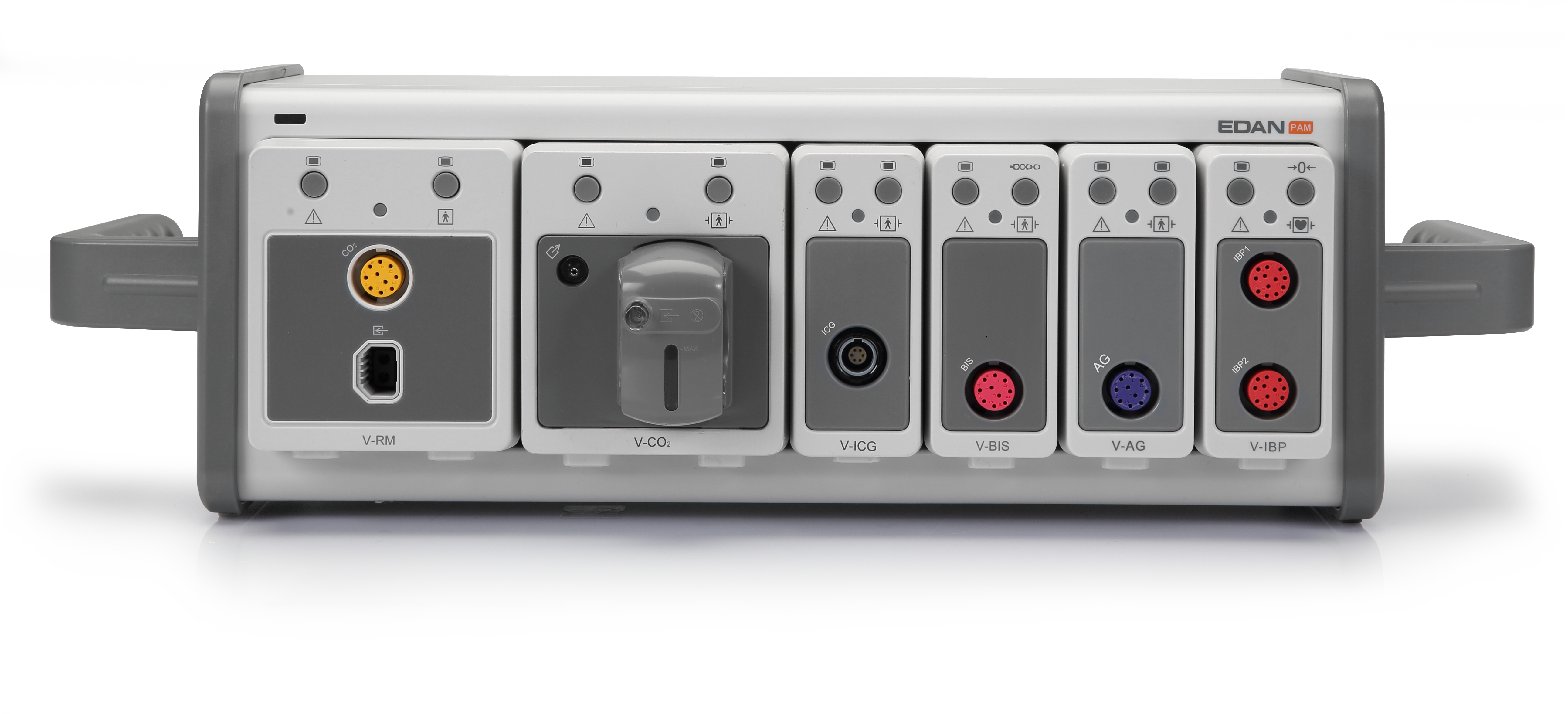

Extensive Module Rack

  • Parameter amplifier mainframe
  • Contain 8 slots

Wide Clinical Coverage

  • Complete set of parameters
  • Fulfill for most clinical environments

Always Connected, Accurate and Ready

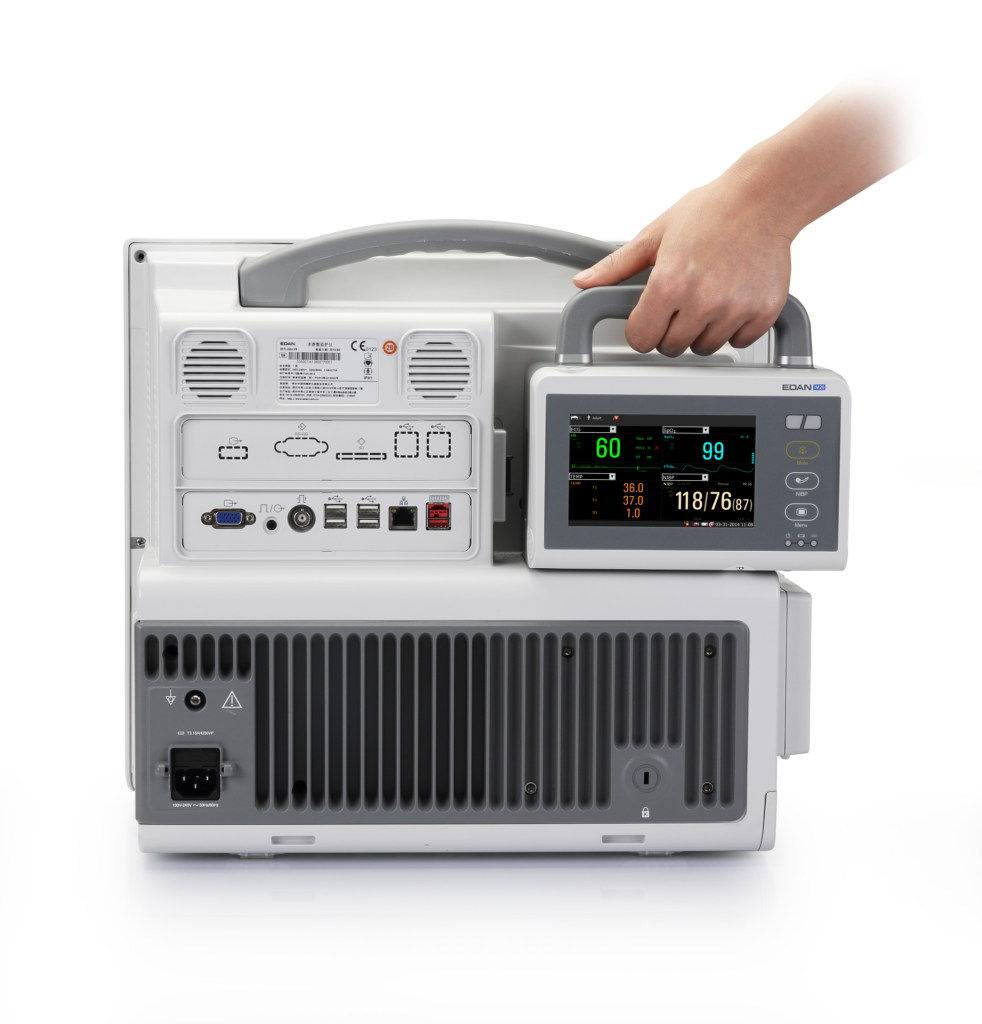

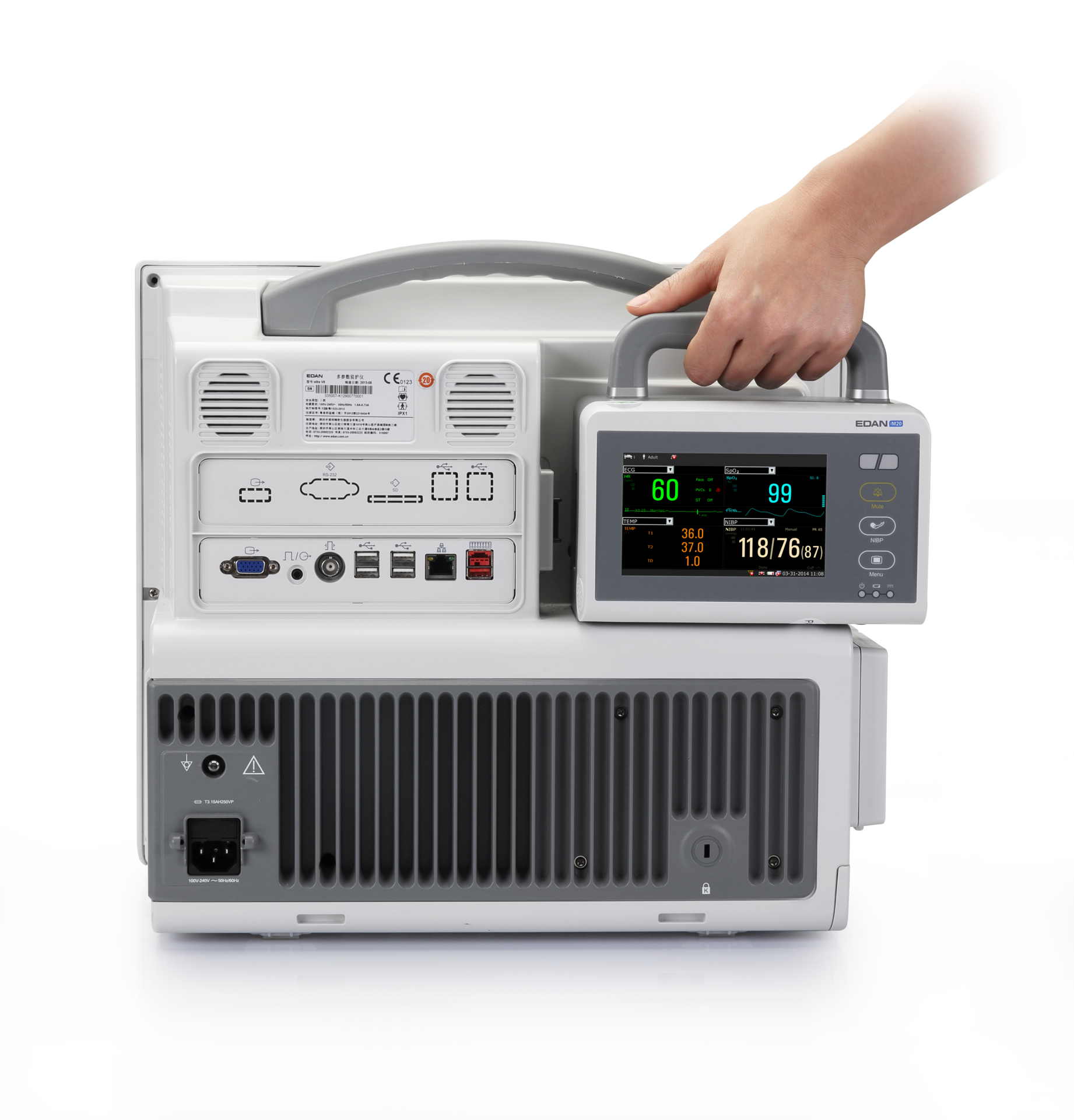

  • A transport monitor iM20 is available, connecting data across different applications, delivering an uninterrupted monitoring during patient transfer.
  • The proprietary technologies and algorithms that comprise the foundation of the elite V series are scientifically validated and optimized, including iSEAPTM ECG monitoring algorithm with 33 types of arrhythmia detections, SEMIP® ECG diagnosis algorithm with 208 findings, iMATTM SpO2 algorithm, iCUFSTM NIBP algorithm, and G2 CO2 technology.
  • To provide comprehensive cares in high acuity applications, the elite V series can expand many advanced technologies and external devices/systems.
Features
Features

The plug and-play modular design of the elite series brings flexibilities to critical cares. Meantime, it offers an easy click-and-switch function to switch between modules with its intuitive MeasureSet Management interface.

  • XM Module
    Standard: 3/5-lead ECG, NIBP, SpO2, PR, RR, TEMP
    Optional: 12-lead ECG, 2-IBP
  •  V-SpO2 Module (Nellcor OxiMaxTM SpO2)
  •  V-NIBP Module (OMRON® NIBP)
  • V-IBP Module (Maximum 8-IBP)
  • V-C.O. Module (Thermal Dilution Cardiac Output)
  • V-CO2 Module (Respironics Mainstream/Sidestream)
  • V-AG Module (PHASEIN Mainstream/Sidestream/02)

Power-off Storage

  • USB Flash Disk
  • SD Card

External Communications

  • Ethernet
  • Bed-to-bed View
  • Nurse Call
  • VGA/DVI Video Ouput
  • Night mode with dimmer screen, backlit buttons, lower
    alarm volume and no HR beeps.
