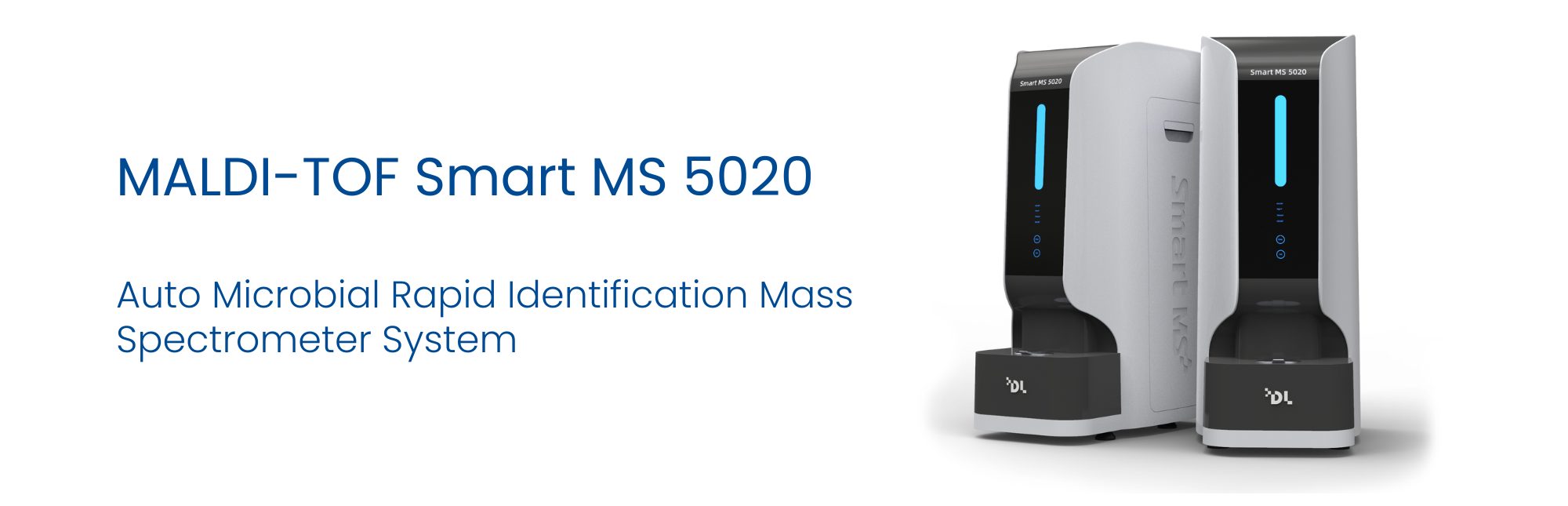

MALDI-TOF Smart MS 5020

Core Technology Innovation

  • High-speed molecular pump and low-noise mechanical pump can complete the vacuum recovery within 30s.
  • Intelligent vacuum management system maintains a high vacuum of 4×10 Pa-8 and improves the ratio of signal-to-noise.
  • Adopting a grid-free and cleaning-free ion source with wide-range ion focusing technology to improve resolution
  • The front amplifier with high gain and low noise.
  • Fast speed and high precision data acquiring system with the rate up to 1-2G hz.
  • Solid state laser: 200 billion shots.

Modular library and AI Neuron Search

  • The library has PMF data of more than 5,000 species including mycobacterium, filamentous fungi, anaerobic bacteria, Legionella, Nocardia and common clinical pathogens, and supports cloud data-base searching to meet the needs of clinical institutes, CDC, and other industrial fields.

DL MASS Software System

  • Integration of data collection, spectrum analysis, and identification. 96 samples detection within 5 minutes.
  • The morphological information of the sample is provided including microscopic cell morphology and culture medium colony morphology, assisting in the verification of the result.
  • Detection of microbial resistance like cephalosporinases, carbapenemases etc.
  • The system can intelligently identify and correct the ±10 Da of the spectrum offset with synchro nous searching during the process. And the detection result will be obtained within 0.1s.
  • With cluster analysis and PCA analysis function, the system can achieve laboratory testing and scien-tific research such as microbial drug resistance analysis, strain traceability analysis, mixed bacteria analysis, etc.
  • Provides the function for custom microbial database.
  • Extended applications: Resistance detection capabilities, multi strains analysis.
  • No QC & Calibration reagent required.
Features
Features
  1. Over 5,000 kinds of microorganisms can be identified.
  2. Long laser life up to 200 billion pulses.
  3. Multi-language operation interface, one - button automatic spectrum collection, reasonable function module.
  4. Identification of gram-positive and gram-negative bacteria, yeast, fungi, mycobacterium, spores, anaerobic etc.
  5. Blood culture positive sample identification available. Resistance research available.
