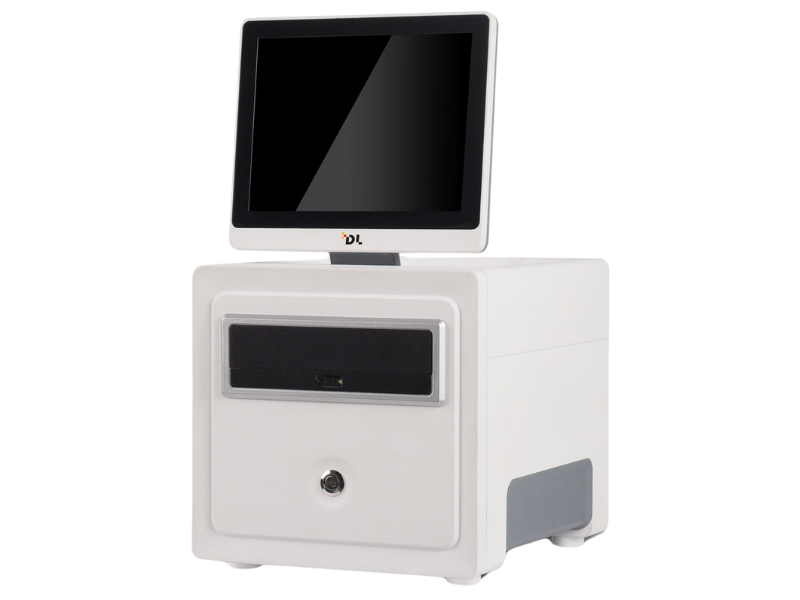

D2 Mini Microbial ID/AST

System Features

  • D2mini database is updated with the latest CLSI/EUCAST.
  • Selective and cascade reporting (A/B/C/U groups） for encouraging appropriate antibiotics use by giving true MIC values and interpretation results according to the latest CLSI M100 regulation.
  • Integrated with reader and Analyzer (inner computer).
  • LIS and WHONET support.
  • Multi-language interface.
  • Easy to understand and operate.
  • Enhances efficiency in complex labs by analyzing drug resistance, susceptibility rates, and data through statistical functions.
  • This system is used to identify the common clinical pathogens and report TRUE MIC value according to latest CLSI and EUCAST.

This system is used to identify the common clinical pathogens and report TRUE MIC value according to latest CLSI and EUCAST.

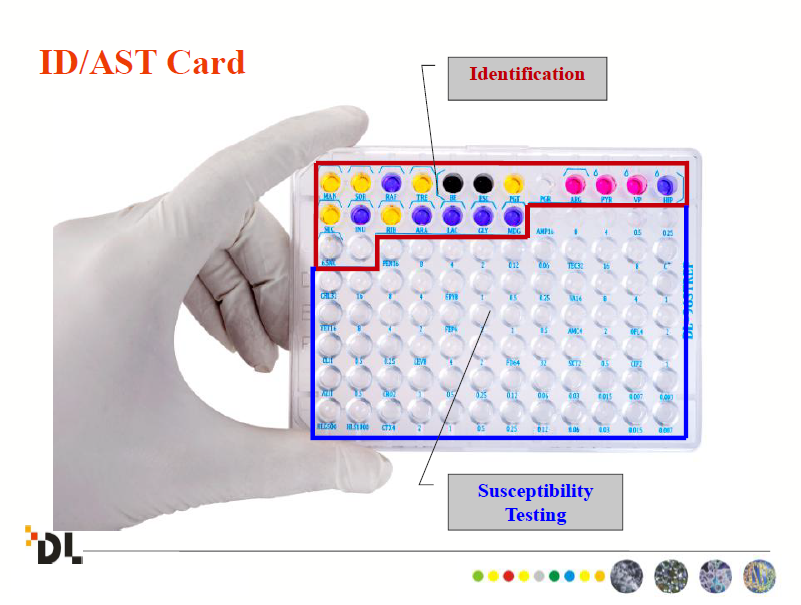

Card Features

  • Test principle: (1) Colorimetry for identification; (2) Turbidime-try for susceptibility testing.
  • DL IST card can identify microbes as “Species” and even “Sub-species”.
  • DL IST card covers nearly 200 types of antibiotics with multi-level concentration, up to 9-dilution for giving TRUE MIC value.
  • Combo test cards deliver more rigorous and accurate results.
  • Multi-drug resistance monitoring: MRSA, β -lac, VRE, VRSA, HLAR, ESBLs etc.
  • Card type: ID/AST combo card & AST(MIC) card.
Features
Features
  1. Principle: Colorimetry for ldentification; Turbidimetry for Susceptibility testing
  2. DL IST card can identify microbes as “Species” and even “Subspecies”
  3. DL IST card covers nearly 200 types of antibiotics with multi-level concentration,up to 9-dilution for givingTRUE MIC value. Following CLSI & EUCAST standard.
  4. Combo test cards deliver more rigorous and accurate results.
  5. Multi-drug resistance monitoring: MRSA, B-lac,VRE,VRSA,HLAR,ESBLs etc.

Card type: ID/AST combo card & AST(MIC) card.

Test Card Identification susceptibility test range Package
DL-96/120E Enterobacteriaceae 10 cards + relevant medium
DL-96/120NE non-fermentative bacteria/Vibrio 10 cards + relevant medium
DL-96/120STAPH Staphylococcus/Micrococcus 10 cards + relevant medium
DL-96/120STREP Streptococcus 10 cards + relevant medium
DL-96FUNGUS Fungi (Yeast like) 10 cards + relevant medium
DL-120NH Neisseria / Haemophiles 10 cards + relevant medium
DL-120 Coryne Corynebacterium 10 cards + relevant medium
