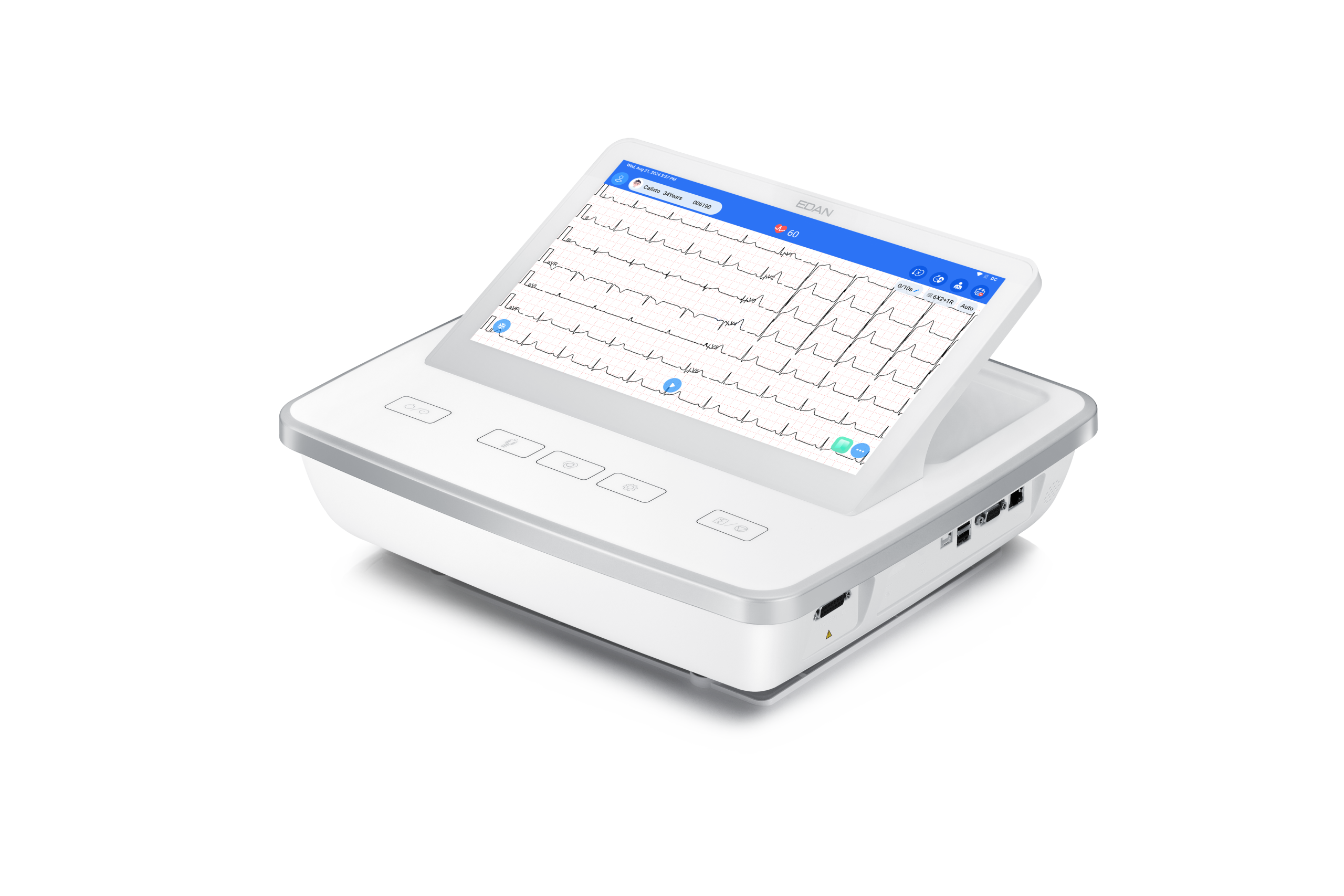

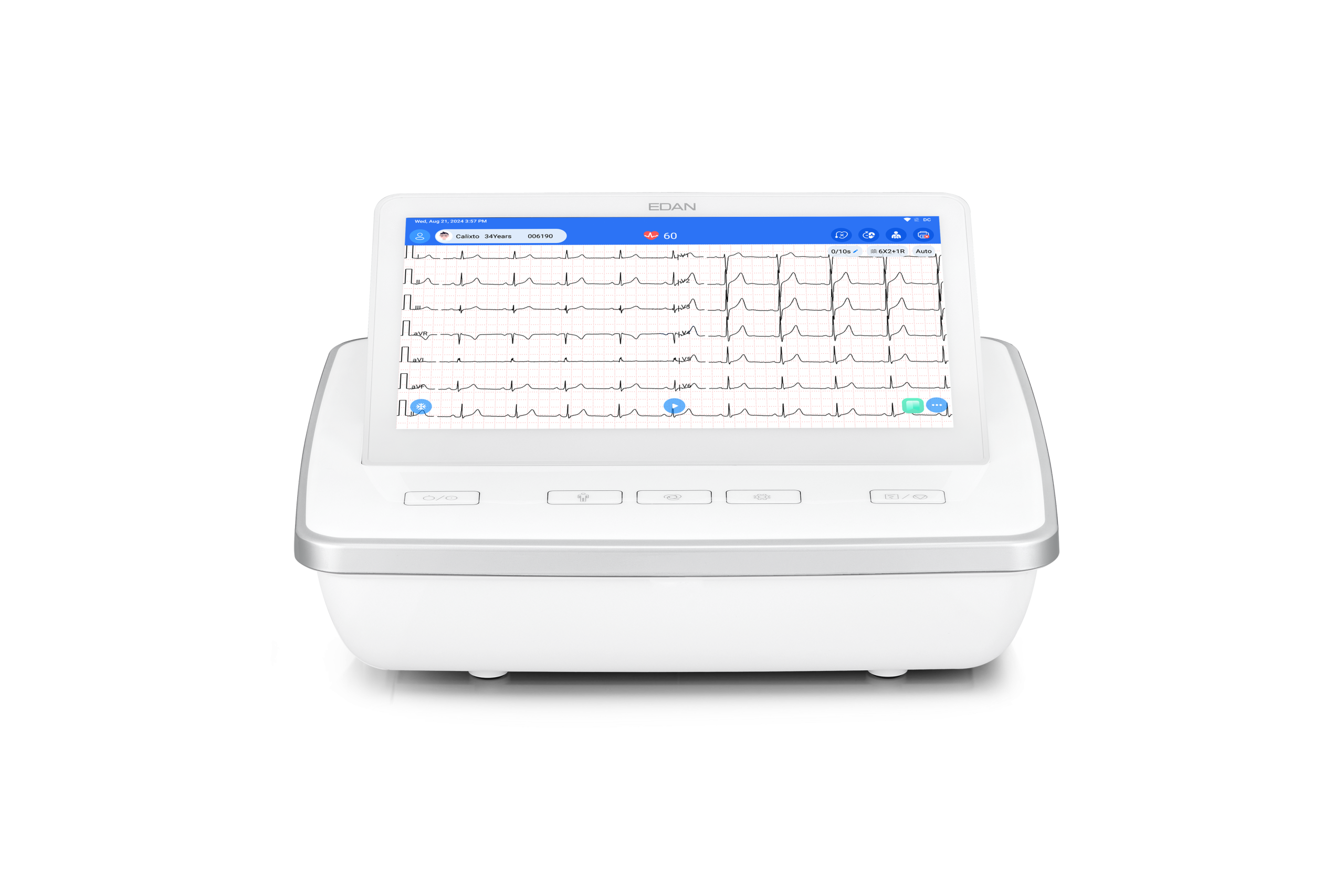

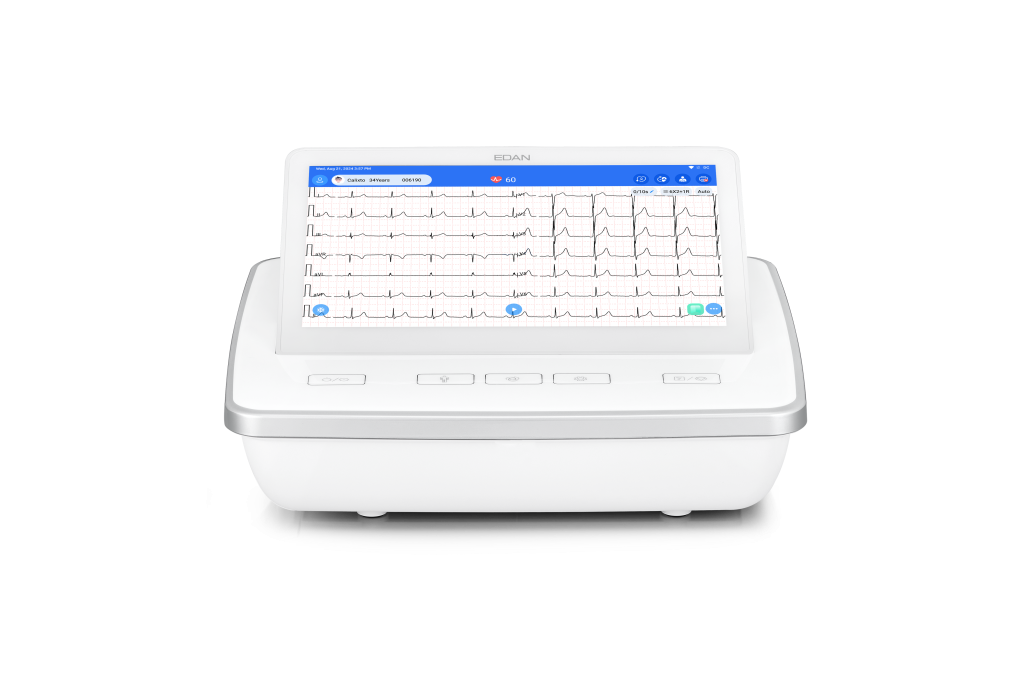

Edan SE-1200E ECG

Comprehensive Solutions for Cardiac Practice

Its blend of advanced features, user-centric design, and seamless integration into existing healthcare infrastructures makes it an invaluable asset in delivering high-quality patient care.

  • 12-lead Standard Resting ECG
  • 9-lead Resting ECG Tailored for Neonates
  • Pharma Study
  • Vector ECG & Timed Vector ECG (VCG&TVCG)
  • Signal-average ECG (SAECG)
  • Heart Rate Variability (HRV)

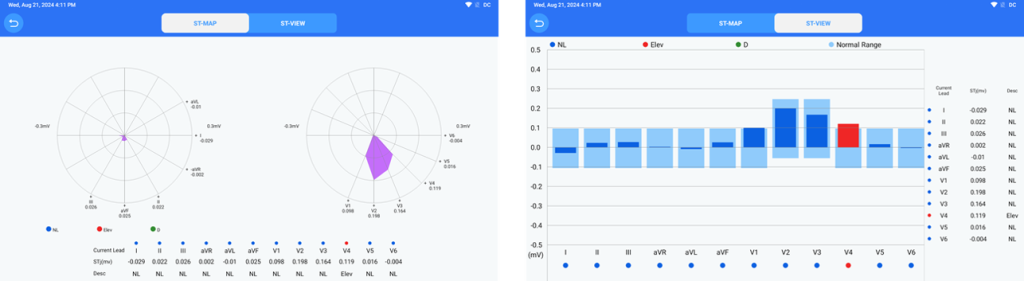

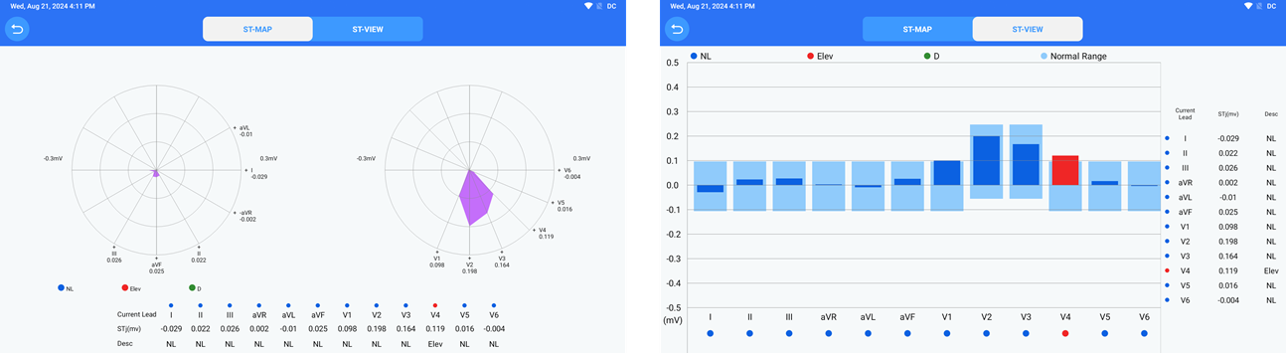

  • ST-view (Intuitive Display of ST-segment) Calculated 18-lead Report

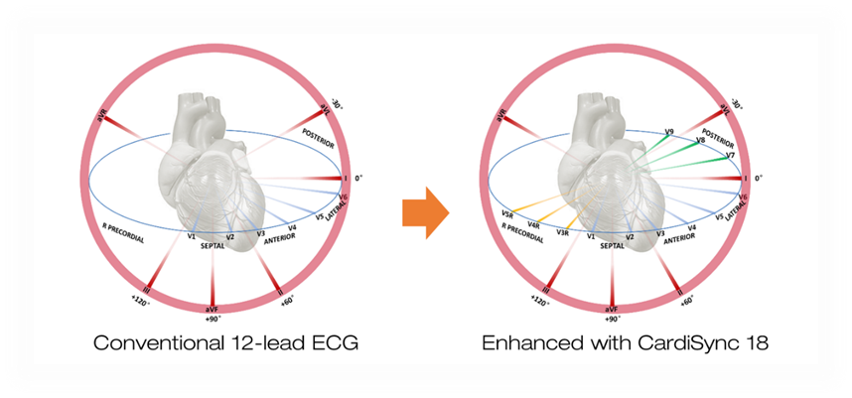

Synthesized 18-Lead Diagnosis

The CardiSync 18 technology allows SE-1202E to perform an 18-lead ECG analysis with 10 electrodes (standard placement) within only one press. This functionality enables healthcare professionals to obtain a complete cardiac assessment with a single touch.

Exceptional Diagnosis Supports

Long-time Sampling

For certain cases in which a prolonged practice is required, an 1800 seconds recording could be applied, to help with either pretreatment diagnosis or post-treatment evaluations.

Auto Arrhythmia Detection

Arrhythmia trace segments could be highlighted on display with automatic saving strips for further analysis.

On-screen Diagnosis

Designed as an “All-in-One” workstation, the SE-1202E allows a complete paperless workflow with all measurements and diagnosis on screen, correctly and coherently. Any waveform segments can be amplified and measured. Any report can be edited and confirmed. Any two reports can be selected and compared.

Features
Features
  • Advanced Display & Interface:1-inch high-resolution foldable capacitive touchscreen with a living hinge design for flexible viewing angles.

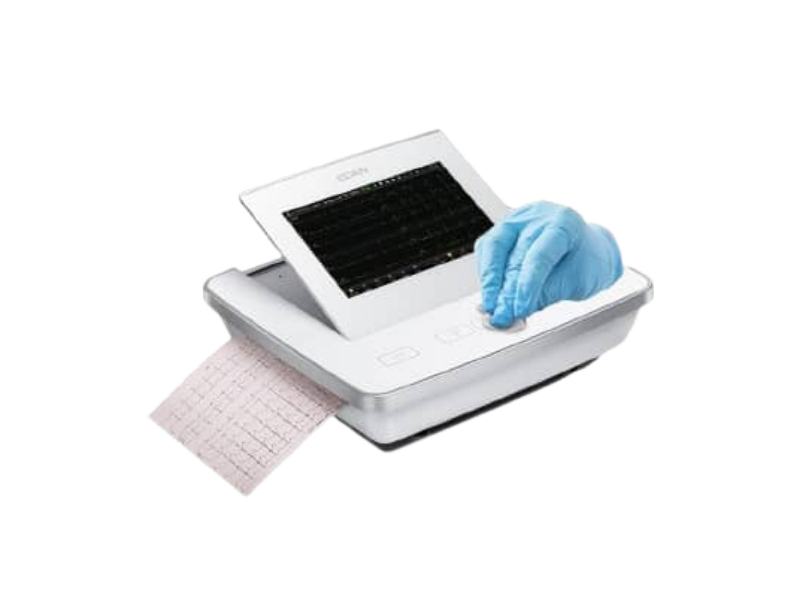

  • Seamless Infection Control: The smooth glass-covered surface, waterproof capacitive keys, and multi-color breathing lights allow for easy cleaning and sterilization
  • Glasgow Interpretation Algorithm: Globally recognized auto-analysis software for accurate adult and pediatric interpretations.
  • CardiSync 18 & ST-Map: Performs calculated 18-lead ECG analysis using standard 10 electrodes and visualizes ST-segment changes intuitively.
  • Specialized Modes: Supports VCG/TVCG (Vector ECG), SAECG (Signal-averaged ECG), HRV (Heart Rate Variability), and a 9-lead configuration for neonatal care.
  • Pacemaker Detection: Exceptional 80,000 Hz sampling frequency ensures the precise capture of tiny pacemaker pacing spikes.
  • Data Storage & Connectivity: Stores up to 1,000 ECG records internally and features Wi-Fi and USB connectivity. It supports HL7 and DICOM protocols for direct, third-party-software-free access to hospital EMR and PACS systems.
  • Extended Sampling: Capable of long-time waveform sampling of up to 1,800 seconds to break the limitations of brief diagnostic recordings.
